Terra Energy Inspection Guide

This is a media only site survey which consists of images of the electric meter, electrical main panel, subpanel, and roof of the home. This guide will help you understand how to find and document the necessary details correctly in the report.

Electric Meter Location

Step 1: Locate the electric meter outside.
Step 2: From a distance, take a picture of the area where the meter is located.

Example Images:

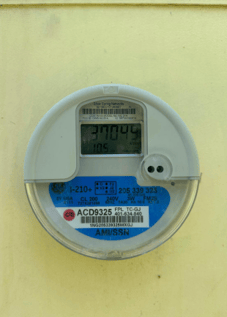

Electric Meter Photo

Step 1: Locate the meter outside of the home.
Step 2: Take a close-up photo of the entire meter showing the meter readings, identifiers, meter numbers, and barcodes.
Step 3: Frame the image so the entire panel fits within it.

Example Images:

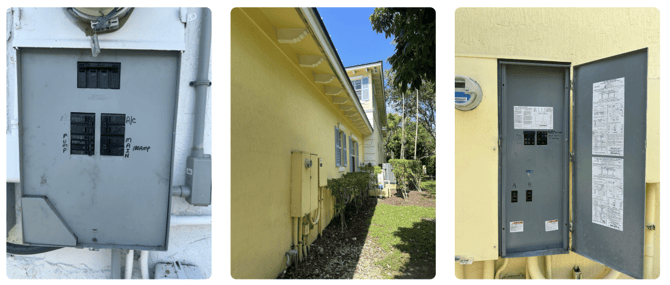

Electrical Panel Location

Step 1: Locate the electrical panel. It is usually outside the home but can also be found in the basement, garage, utility room, closet, or hallway.
Step 2: From a distance, take a picture of the area where the panel is located.

Example Images:

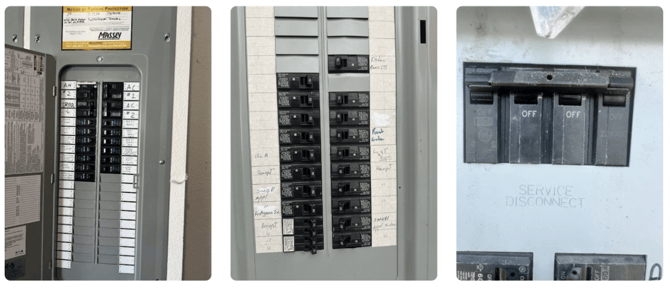

Electrical Panel Photo
Step 1: Locate the electrical panel
Step 2: Please take a photo of the exterior panel with the door open showing the breakers.

Note: If the panel is located under the meter, you can open it from the bottom corners, even if there's an electrical tag on the upper half of the meter.

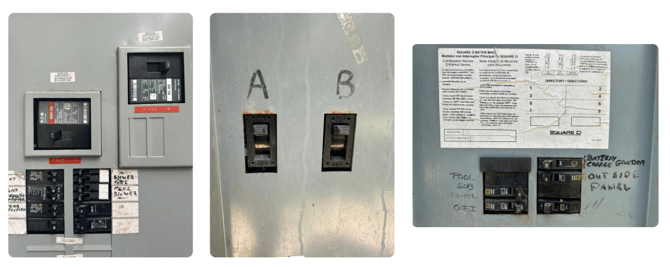

Electrical Panel Capacity
Step 1: Locate the electrical panel.
Step 2: Take an image of the entire electrical panel up close.

Example Images:

Note: The picture should clearly show the value of the main switch, as this is a crucial detail for the report. The value is engraved on the side of the switch.

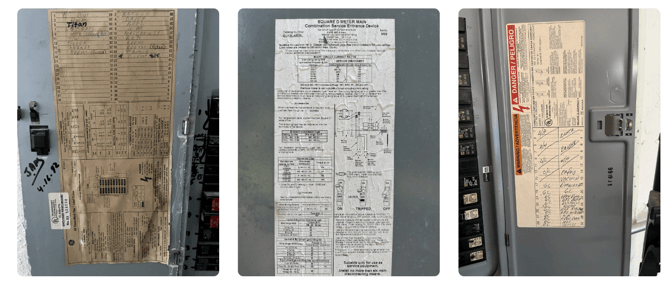

Electrical Panel Data Label

Step 1: Locate the data panel label and take a clear picture.

Example Images:

Subpanel Location

Step 1: Locate the subpanel inside of the home.
Step 2: From a distance, please take a photo showing the interior panel's location.

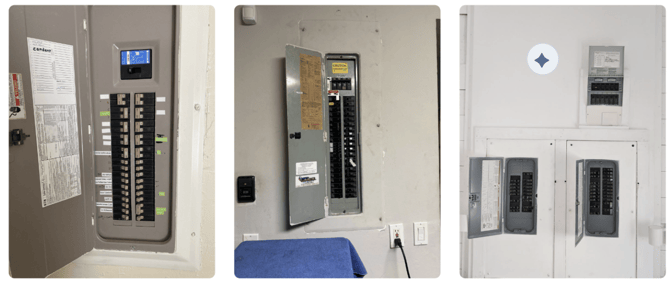

Subpanel Photo
Step 1: Locate the subpanel.
Step 2: Please take a photo of the interior panel with the door open showing the breakers.

Example Images:

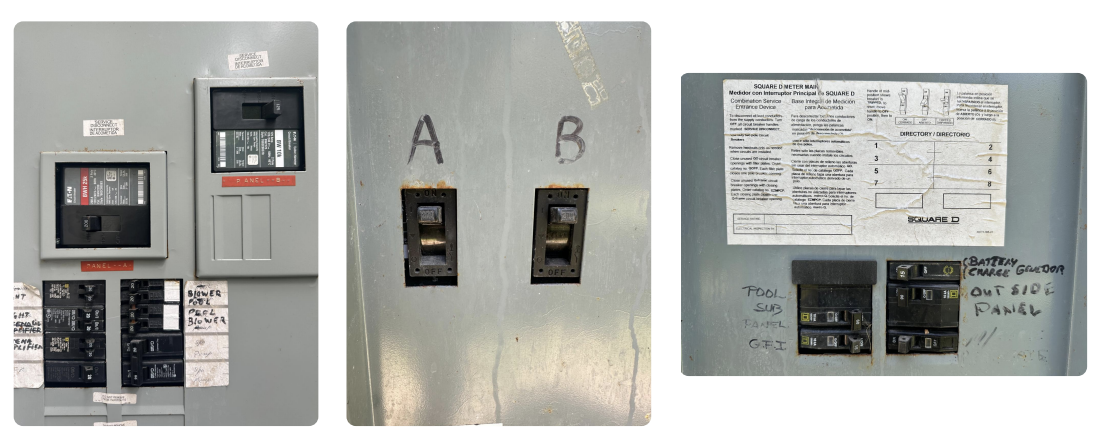

Subpanel Capacity
Step 1: Locate the subpanel.
Step 2: Please take 2 photos: one of the breaker showing its amperage capacity (the number is located directly on the front or side of the switch and usually followed by the letter "A"), and another of the label displaying the same value.

Example Images:

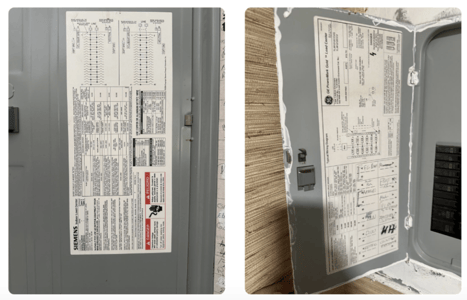

Subpanel Data Label

Step 1: Locate the data panel label and take a clear picture.

Example Images:

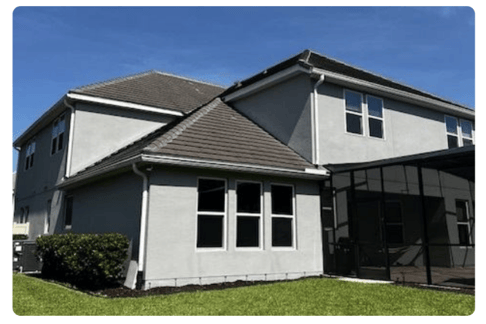

Step 1: Please take four photos of the entire roof and include a photo of what the shingles are made of.

Example Images:

FAQ's

What if the home only has one panel present? If the home only has one panel (main), then please capture the necessary pictures according to the template and mark the subpanel as "not present."
